1106 Brushless Motors

Rated at 3800KV / 4500KV, 1106 Brushless Motor hits the sweet spot for high-powered 4s power. This motor has been designed and built for your 4S 85-120mm racing or freestyle drone, resulting in incredible power and performance.

BULLET POINTS

• Customized for 4S 85-120mm drones self-assembly, which is compatible for HX100, Beta85X drones, Beta95X Frame Kit and Beta95X V3 Frame Kit.
• Factory Balanced Precision CNC Motor Bells.
• Built from the High-quality Aviation Aluminum Alloy, Sintered NdFeB N48H High-temperature Magnets, and Japanese Kawasaki Silicon Steel Sheets Iron Core.
• Extensive and rough testing ensures its ability to withstand some of the worst crashes, offers incredible power, efficiency, and torque.
• 1106 3800KV brushless motors and Gemfan D63 5-Blades Props, which is a perfect match to offer pilots strong power and less noise, which will give you a super-efficient flight experience.

RECOMMENDED PARTS

• HX100 FPV Quad: HX100 Frame + 3″ props + Toothpick F4 2-4S AIO Brushless FC
• Beta85X Drones: Beta85X frame + EMAX Avan 2″ props + F4 2-4S AIO Brushless FC
• Beta95X Frame Kit + 2540 3-Blade Propellers
• Beta95X V3 Frame Kit + Gemfan D63 5-Blades Props

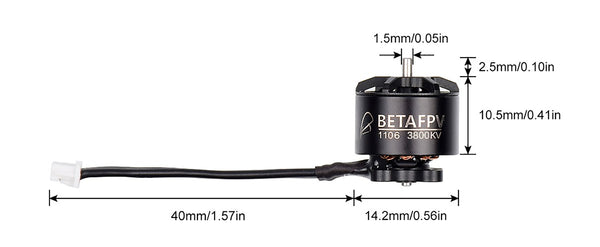

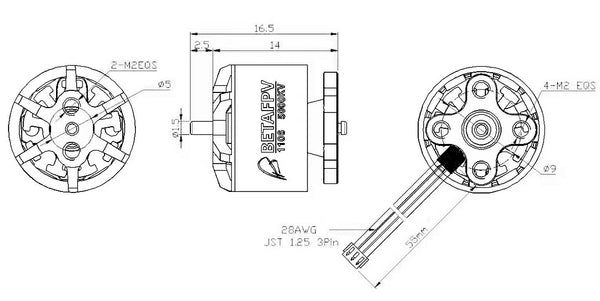

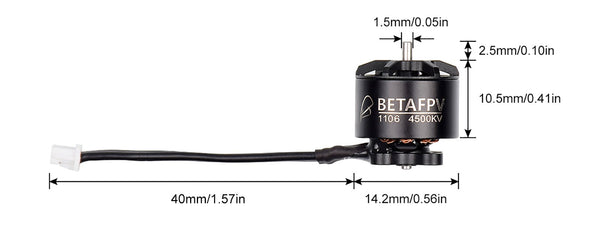

SPECIFICATION

• Height: 14mm

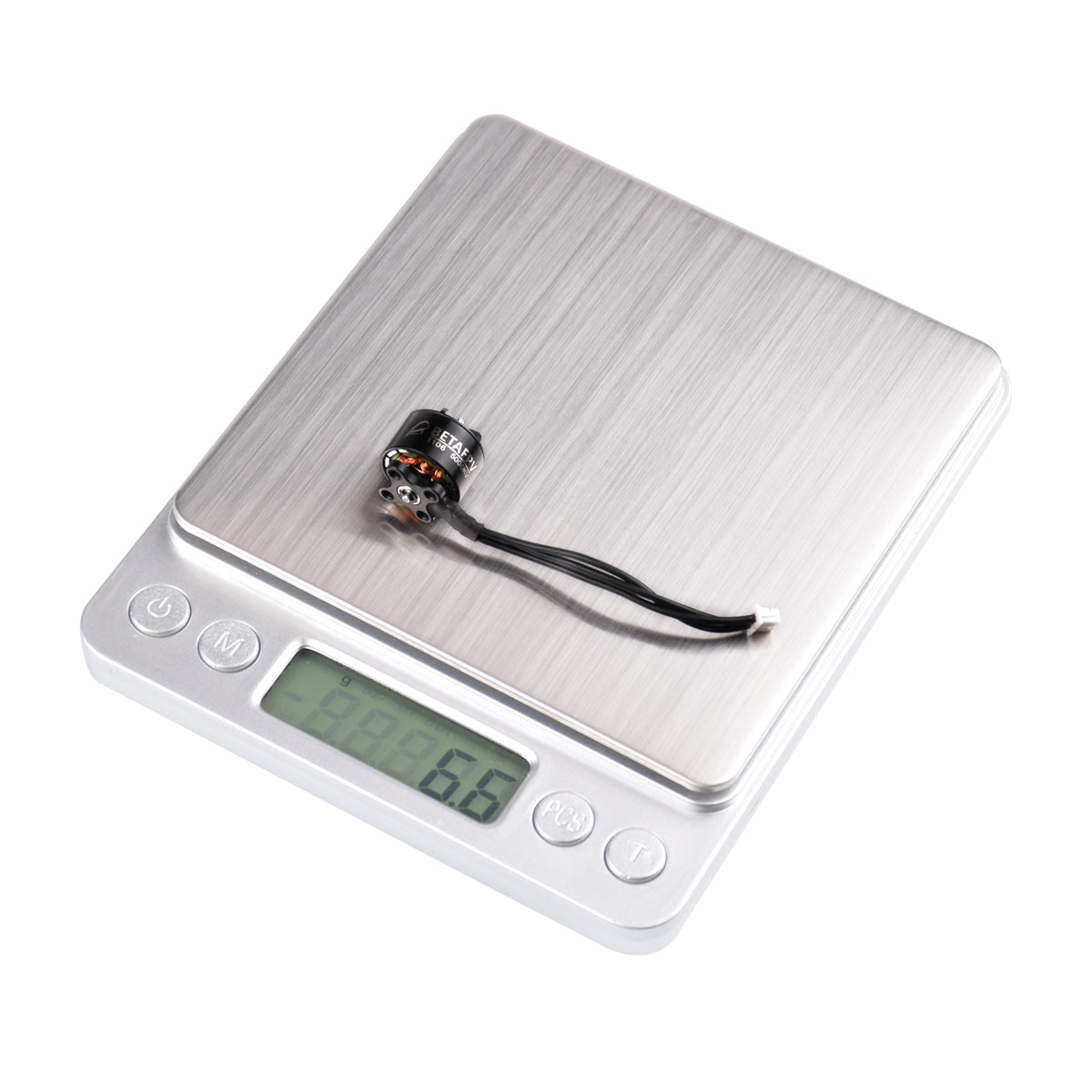

• Weight: 6.6g/pc
• Shaft: φ1.5mm
• Motor Mount Holes: M2EQS on Dia 5.0mm
• KV (rpm/V): 3800KV / 4500KV
• Plug and cables: Micro JST-1.25 3-pin connector with 28AWG cables

PACKAGE

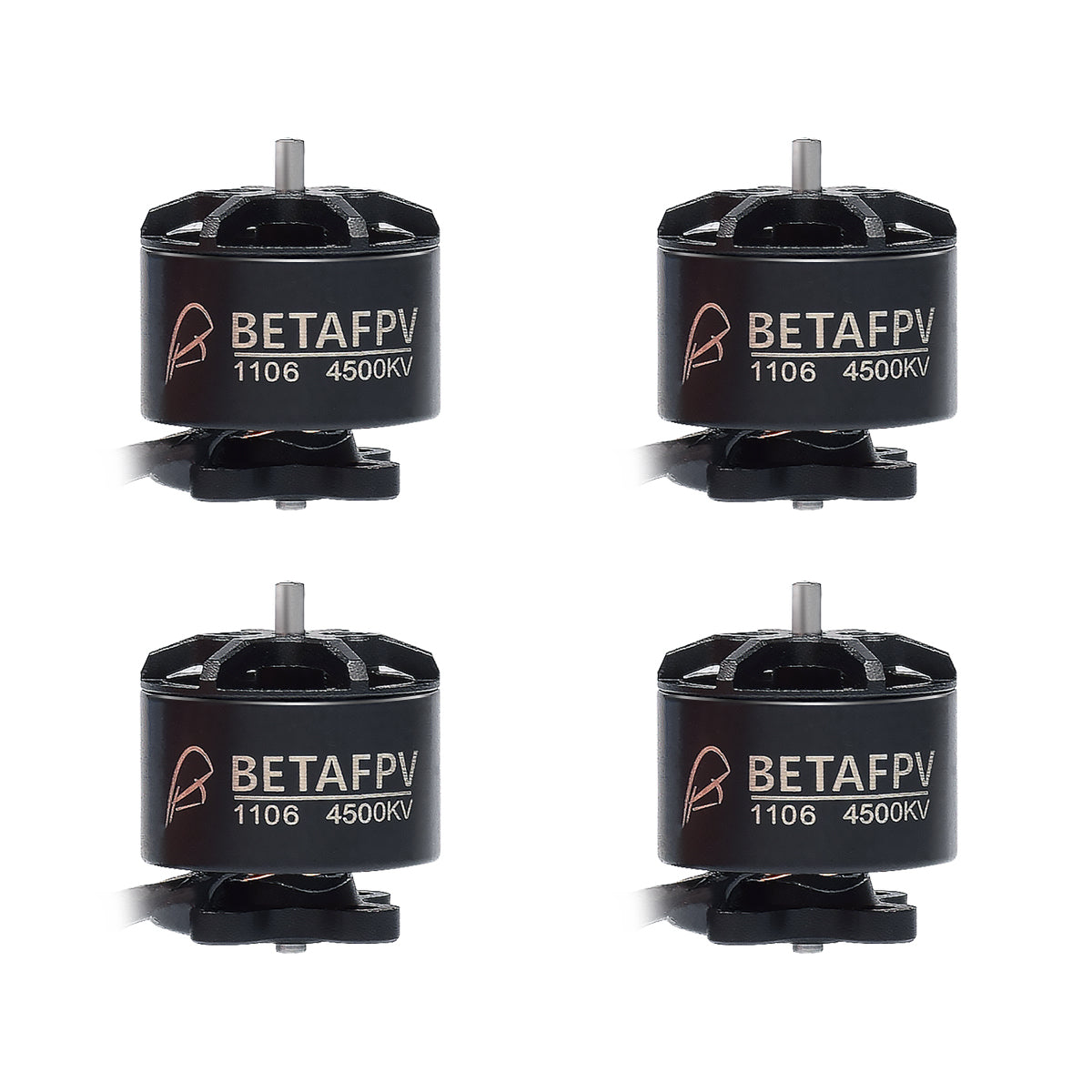

• 4 * BETAFPV 1106 Brushless Motors
