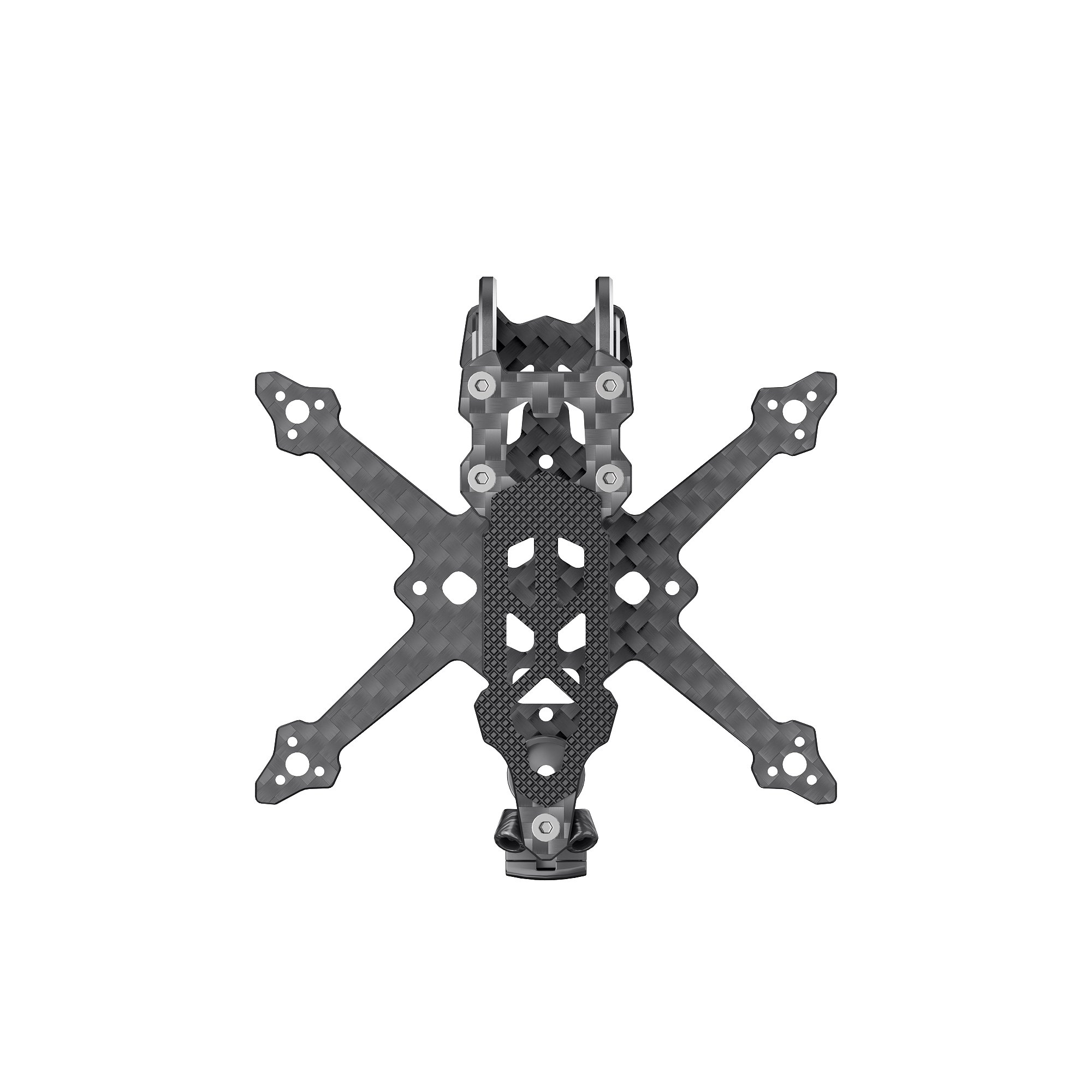

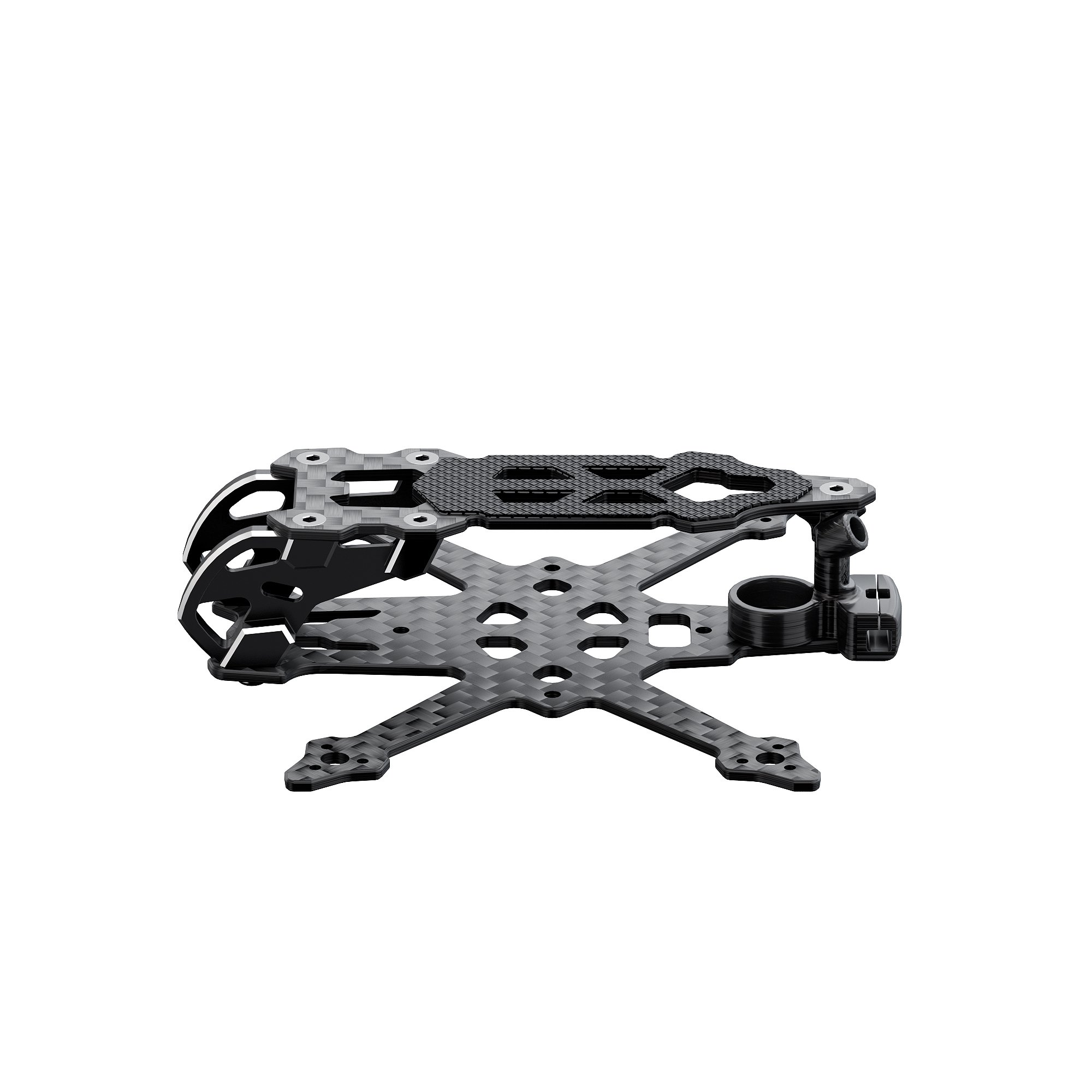

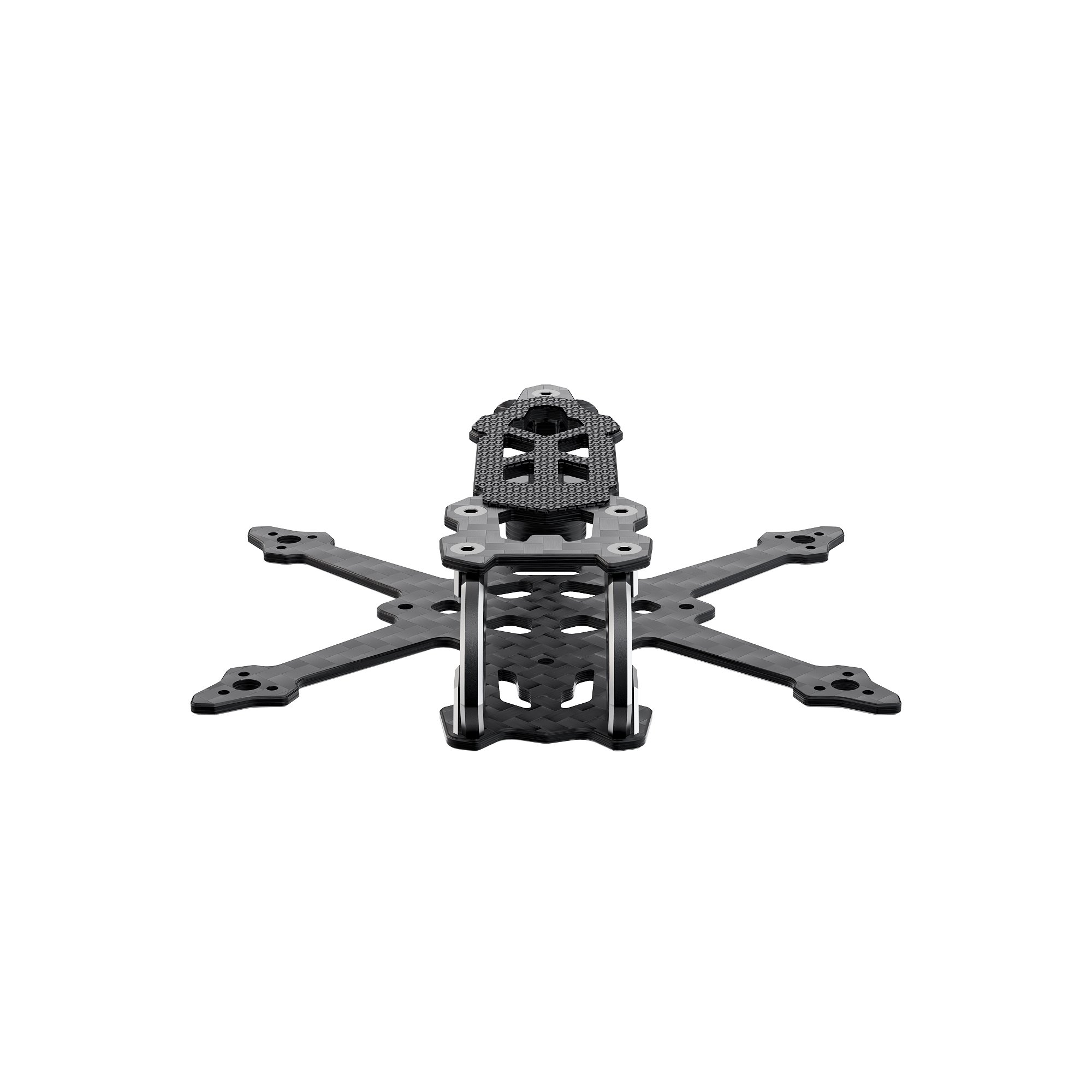

GEP-TC18 Frame

Features

1.  Camera secured with 7075 aluminum parts for enhanced stability.
2. Integrated rear design with space for the buzzer and dual VTX antennas.
3. The 1.5mm thick drone arm ensures durability and robustness.

Specification

• Model: GEP-TC 18 frame
• Wheelbase: 87mm
• Dimension: 100*90mm
• Frame Type: Wide X
• Top Plate: 1.5mm
• Bottom Plate: 1.5mm
• FC Mounting Pattern: 25.5*25.5/M2
• VTX Mounting Patterns:  25.5*25.5/M2
• Motor Mounting Patterns: 6.6*6.6/M1.4
• Camera Side Plate Gap: 14*14mm
• Stack Mounting Height: 12mm
• Weight: 11.7g

Recommended Accessories

• Motor: 0802-1002
• FC:TAKER F411-12A-E 1~2S AIO FC
• VTX: RAD Tiny 5.8G 400mW
