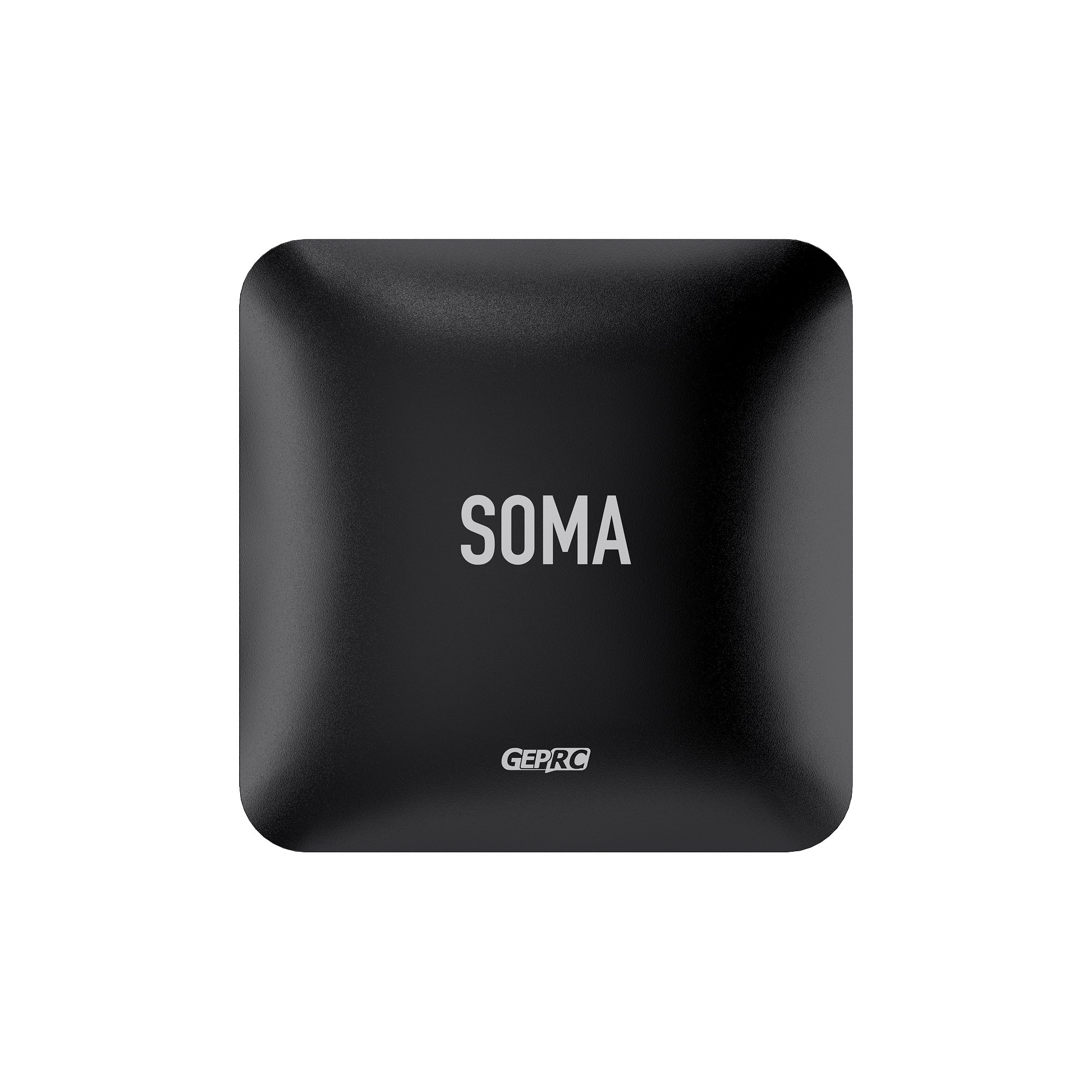

GEPRC SOMA 3.3G Directional Flat-Panel Antenna

Summary

The GEPRC SOMA 3.3G Directional Flat-Panel Antenna features a dual-layer PCB RF design, offering a high gain of up to 17dBi and a low average VSWR of 1.47, ensuring excellent signal reception.

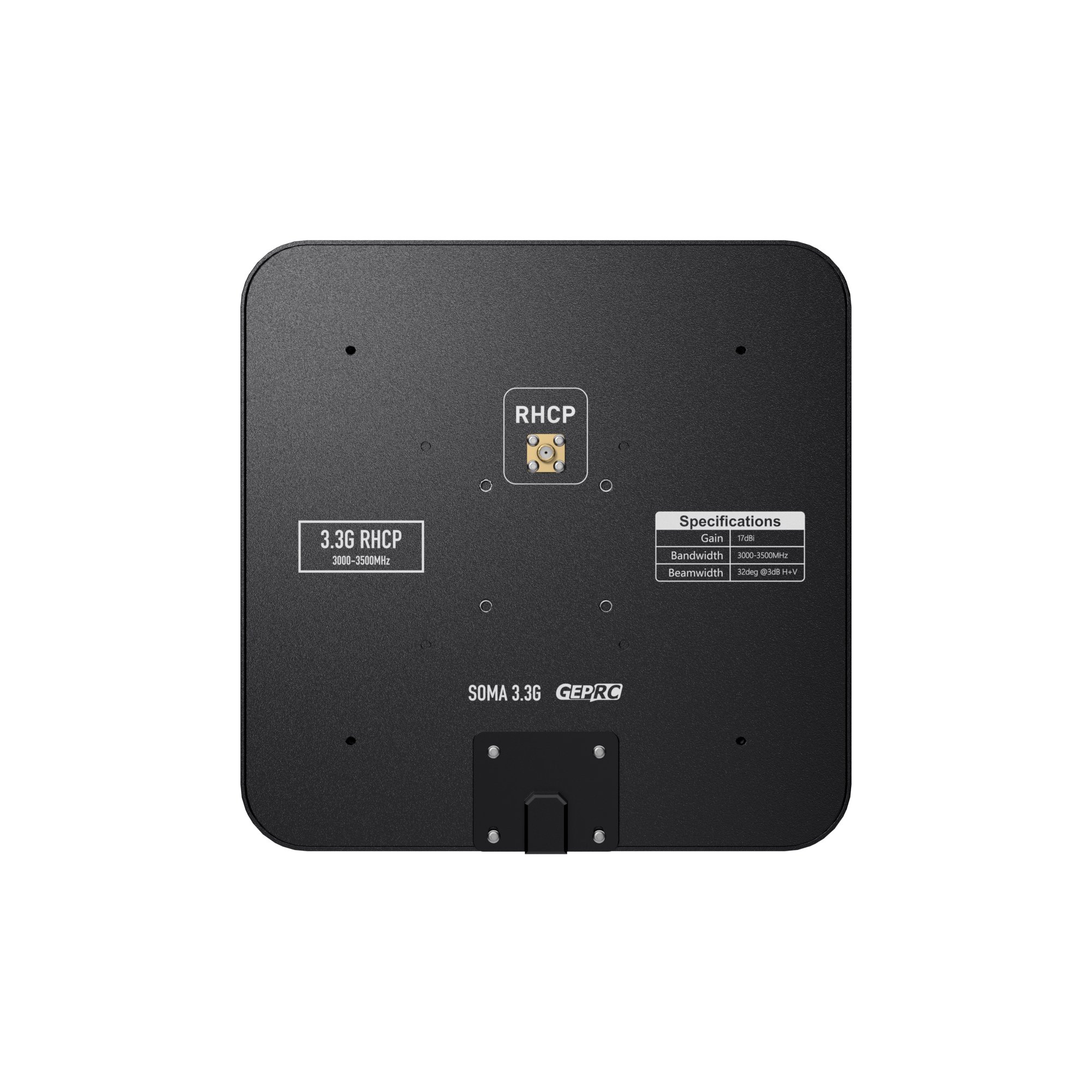

It’s compatible with various brackets and is built with a durable 1/4 aluminum alloy base. The antenna features a sleek, high-tech design, with an integrated injection-molded casing for superior structural integrity

Features

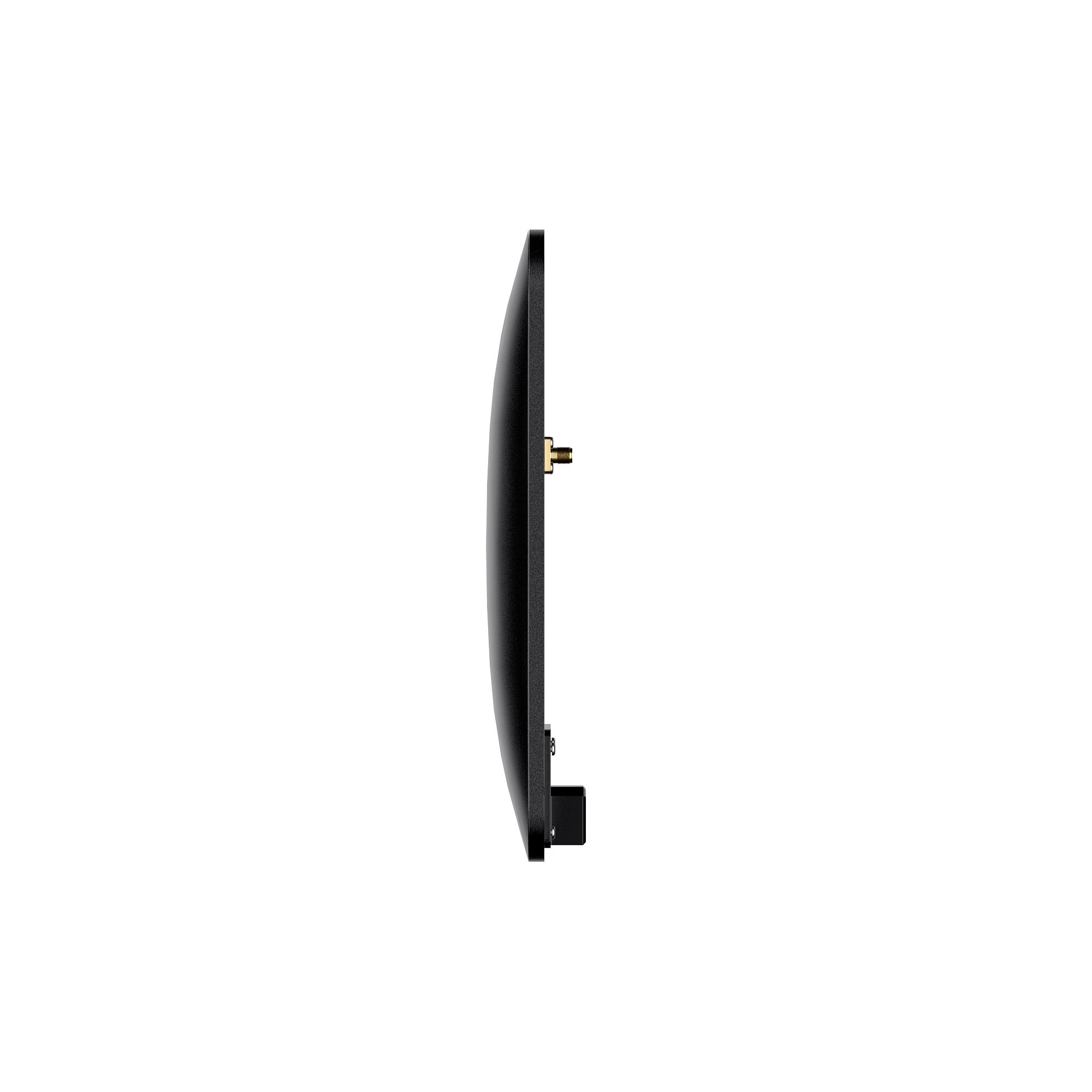

1.  Smooth, ultra-thin design.
2.  Low VSWR, high gain directional antenna, up to 17dBi.
3. 1/4 aluminum alloy base, compatible with various brackets.
4.  High-quality SMA connector for lower impedance and better transmission efficiency.
5.  Each antenna undergoes meticulous testing with a spectrum analyzer to ensure VSWR compliance with industry standards

Specifications

• Model: GEPRC SOMA 3.3G Directional Patch Antenna
• Center Frequency: 3.3GHz
• Bandwidth: 3.0GHz~3.5GHz
• Polarization: RHCP
• Gain: 17dBi
• Axial Ratio: ≤3
• SWR：≤1.47
• Radiation Efficiency: 86%
• Cross polarization suppression: -25dB
• Overall Dimension: 203.5mm x 203.5mm x 20mm
• Antenna Weight: 293g
• Enclosure Material: ABS
• Connector Type: SMA (external thread, internal hole）

Includes

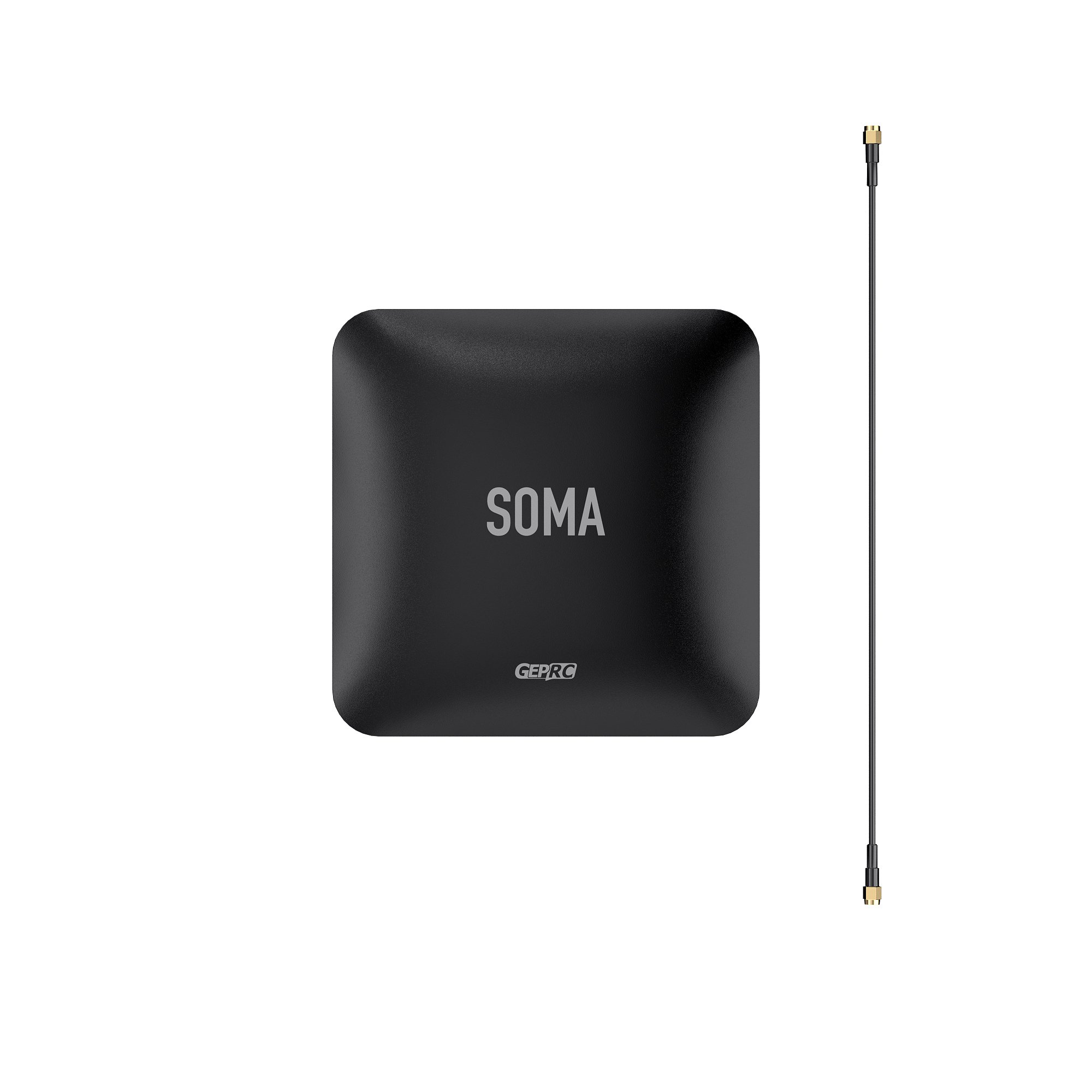

1 x SOMA 3.3G Directional Patch Antenna
